Implementing Kruskal’s Algorithm in Java

Introduction

Start with a brief introduction to Kruskal’s algorithm, explaining its purpose and how it fits into the broader context of graph theory and minimum spanning trees (MST).

Java Code Explanation

Edge Class

Explain the Edge class:

class Edge implements Comparable<Edge> {
    int source, destination, weight;

    public Edge(int source, int destination, int weight) {
        this.source = source;
        this.destination = destination;
        this.weight = weight;
    }

    @Override
    public int compareTo(Edge other) {
        return this.weight - other.weight;
    }
}

• Describe how the Edge class represents an edge with source, destination, and weight.
• Highlight the compareTo method used for sorting edges by weight.

UnionFind Class

Explain the UnionFind class:

class UnionFind {
    private final int[] parent;
    private final int[] rank;

    public UnionFind(int size) {
        parent = new int[size];
        rank = new int[size];
        for (int i = 0; i < size; i++) {
            parent[i] = i;
            rank[i] = 0;
        }
    }

    public int find(int u) {
        if (u != parent[u]) {
            parent[u] = find(parent[u]);
        }
        return parent[u];
    }

    public void union(int u, int v) {
        int rootU = find(u);
        int rootV = find(v);

        if (rootU != rootV) {
            if (rank[rootU] > rank[rootV]) {
                parent[rootV] = rootU;
            } else if (rank[rootU] < rank[rootV]) {
                parent[rootU] = rootV;
            } else {
                parent[rootV] = rootU;
                rank[rootU]++;
            }
        }
    }
}

• Describe the UnionFind class used for union-find operations, which are crucial for cycle detection.

KruskalAlgorithm Class

Explain the main KruskalAlgorithm class:

public class KruskalAlgorithm {
    private final int vertices;
    private final Edge[] edges;

    public KruskalAlgorithm(int vertices, Edge[] edges) {
        this.vertices = vertices;
        this.edges = edges;
    }

    public void kruskalMST() {
        Arrays.sort(edges);

        UnionFind uf = new UnionFind(vertices);

        Edge[] result = new Edge[vertices - 1];
        int edgeIndex = 0;

        for (Edge edge : edges) {
            if (edgeIndex == vertices - 1) break;

            int sourceRoot = uf.find(edge.source);
            int destinationRoot = uf.find(edge.destination);

            if (sourceRoot != destinationRoot) {
                result[edgeIndex++] = edge;
                uf.union(sourceRoot, destinationRoot);
            }
        }

        System.out.println("Edges in the Minimum Spanning Tree:");
        for (Edge edge : result) {
            System.out.println(edge.source + " - " + edge.destination + ": " + edge.weight);
        }
    }

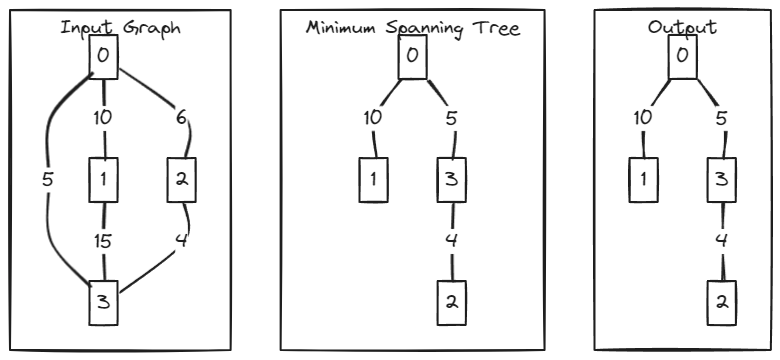

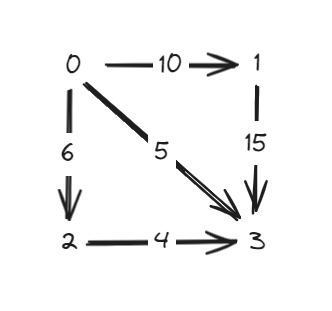

    public static void main(String[] args) {
        int vertices = 4; // Number of vertices in the graph
        Edge[] edges = {
                new Edge(0, 1, 10),
                new Edge(0, 2, 6),
                new Edge(0, 3, 5),
                new Edge(1, 3, 15),
                new Edge(2, 3, 4)
        };

        KruskalAlgorithm kruskal = new KruskalAlgorithm(vertices, edges);
        kruskal.kruskalMST();
    }
}

• Explain how the KruskalAlgorithm class initializes and executes Kruskal’s algorithm to find the Minimum Spanning Tree (MST).
• Describe the kruskalMST method, which sorts edges, applies union-find to detect cycles, and prints the MST edges.

Conclusion

Summarize Kruskal’s algorithm and its significance, possibly mentioning its applications and complexity.
